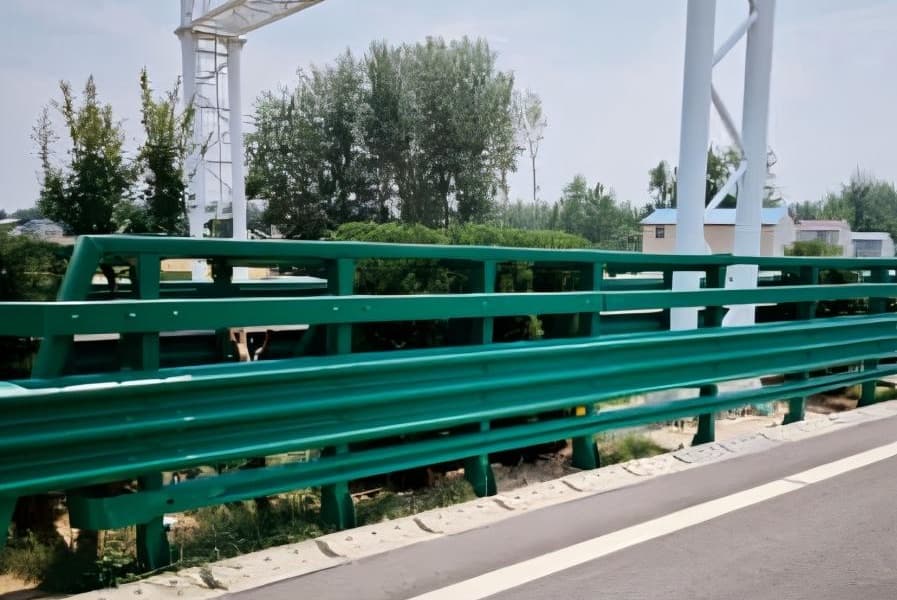

Designed for highway applications where minimal side‑deflection is critical, the High‑Strength Low Deformation Guardrail enhances road safety by offering robust impact resistance while maintaining structural integrity under collision. Ideal for high‑speed roadways, expressways, and heavy traffic zones, this guardrail system ensures consistent performance with reduced deformation during vehicle impacts—a key factor in minimizing vehicle rollover and redirecting errant vehicles safely back onto the road.
| Base material | High‑tensile steel (e.g., grade Q345 / ASTM A529M) |
| Beam profile | W‑Beam or Two‑Wave configuration |
| Plate thickness | 2.5 mm – 4.0 mm |
| Standard beam length | 4,100 mm – 4,320 mm |
| Depth & wave dimensions | Approx. 85 mm depth / wave profile |
| Zinc coating (double‑sided) | ≥ 550 g/m² (≈ 40 µm) |
| Post spacing | ~1.9 m (6 ft 3 in) typical spacing |
| Rated system performance | Low deformation under impact load ( meets TL‑3 / NCHRP 350) |
Product introduction
Engineered for high-performance road safety, the High-Strength Low Deformation Guardrail is an advanced solution that provides effective vehicle containment with minimal deflection during impact. This innovative guardrail is constructed using high-strength steel and features a hot-dip galvanized coating, offering superior corrosion resistance to maintain its integrity under extreme weather conditions. The low deformation design not only enhances safety but also reduces the risk of secondary accidents by keeping the guardrail in its optimal position. Ideal for highways, bridges, and areas with high traffic, this guardrail ensures driver protection and minimizes maintenance costs over its long lifespan, making it a reliable choice for modern infrastructure.
WORKMANSHIP
Hot-dip galvanizing: Provides electrochemical protection, preventing the steel substrate from rusting from the inside out.
Plastic spraying: Provides double anti-corrosion protection, with beautiful and eye-catching colors.
Epoxy-zinc-based polyester composite coating process
| Technical Parameters | Atmospheric Spray Coating Layer | Hot Dip Galvanized Coating Layer |
|---|---|---|
| Coating Adhesion Strength | ≥30MPa | 15-20MPa |
| Salt Spray Resistance | 1500 hours | 168 hours |
| Moisture Resistance | 1000 hours | 168 hours |
| Zinc Coating Amount | Powder Zinc, Reduced by 30% | Melted Zinc, High Zinc Content |
| Frost Impact | No Impact | Accelerated Corrosion |
Applications
Our Advantages
Enhanced Safety: The guardrail minimizes deflection upon impact, maintaining structural integrity and reducing accident risk.
Durable: Built with high-quality materials and corrosion-resistant coatings, it withstands harsh weather and extreme conditions.
Customizable: Adjustable in height, span, and design to fit specific road and safety requirements.
Low Maintenance: Designed for minimal upkeep, reducing lifecycle costs and ensuring long-term performance.
High Strength with Low Deformation: Absorbs and redistributes impact forces, providing effective vehicle containment with minimal deformation.
Intelligent Manufacturing Base
Shipping Details
Qualifications
High‑Strength Low Deformation Guardrails for Highway Safety are manufactured to align with global benchmarks in quality, safety, and environmental stewardship. Every unit is built to meet rigorous industry criteria, providing dependable performance under heavy traffic conditions. These certifications reaffirm our promise to deliver high‑performance protection solutions that support safer, longer‑lasting roadways.
FAQ
1. What does “low deformation” mean in this guardrail system?
Low deformation refers to the guardrail’s ability to undergo minimal bending or movement upon impact, ensuring that it retains structural integrity and provides stronger containment for vehicles.
2. Can this guardrail system be used on curves and slopes?
Yes, the guardrails are designed for challenging road geometries, including curves and embankments, and can be tailored in span, height, and anchorage to suit specific terrain conditions.
3. How long can I expect this guardrail to last under normal highway service?
With appropriate installation and maintenance, the system is engineered for a service life of 20 – 30 years, even under heavy traffic and harsh environmental exposure.
4. How does this system enhance highway safety compared to standard guardrails?
By combining high‑strength materials and low‑deformation design, this guardrail system offers better energy absorption, higher resilience in collisions, and improved stability—especially important on high‑speed roads or freight corridors.
5. What kind of maintenance is required?
Routine inspections are recommended to check anchorage, fastener integrity, and coating condition. Minor corrective actions (like tightening bolts or replacing damaged posts) help maintain optimal performance with minimal disruption.
